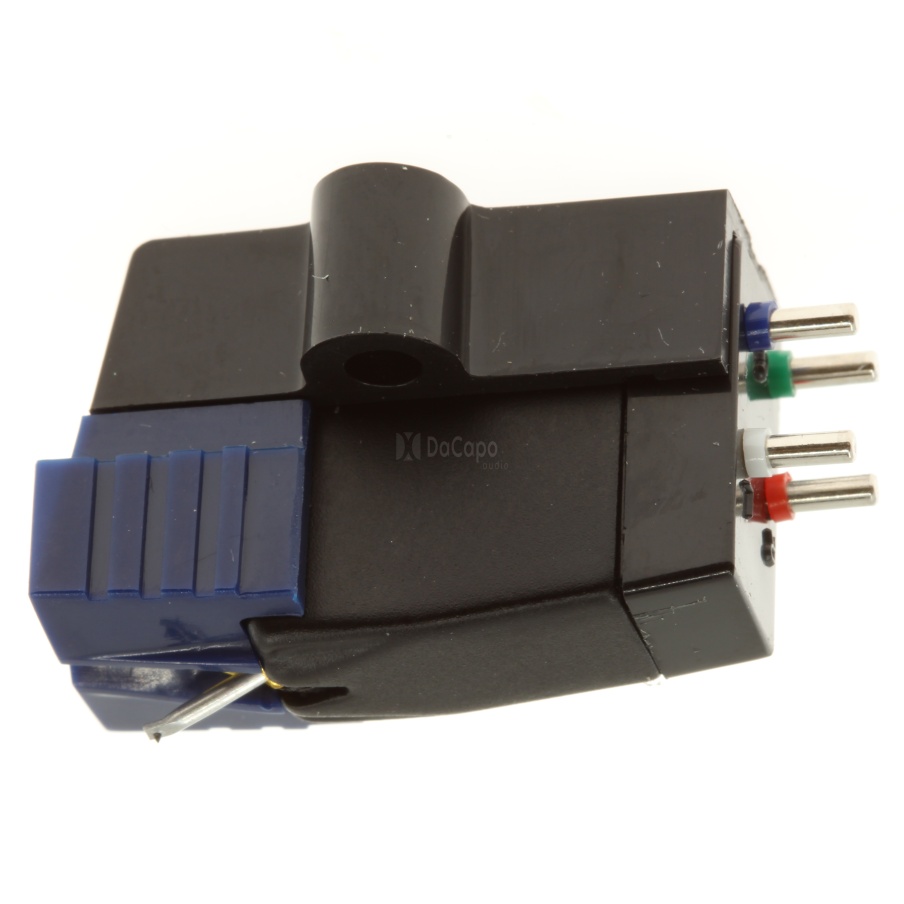

Sumiko Oyster MM

Sumiko Turntable Cartridges

Price: $81.39
No VAT
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe
The bonded spherical stylus and rugged generator assembly of the Oyster makes it perfect for those seeking a cost-effective moving magnet cartridge that can be used in a wide range of applications.
SUMIKO
SCA101005

Data sheet

Output voltage
5.0mV
Frequency response
30Hz – 20kHz
Vertical tracking angle
25°
Tracking force
1.5g - 2.5g
1.5g – 2.5g
2.3g
Channel separation
25dB @ 1Khz
Cantilever
Aluminum alloy
Channel balance
1dB @ 1kHz
Cartridge mass
5.3g 18.2 x 18 x 30.50mm (WxHxD)
Stylus Type
0.7mil Spherical
Coils
High-Purity Copper
Load resistance
47kΩ
Load capacitance
100pF – 200pF
Internal resistance
1130Ω
Replacement stylus
Oyster RS
Compliance
12×10-6cm/dyn @ 100Hz
