Audio Technica VM530EN Cartridge

Audio Technica Cartridges

Price: $165.55
No VAT
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe

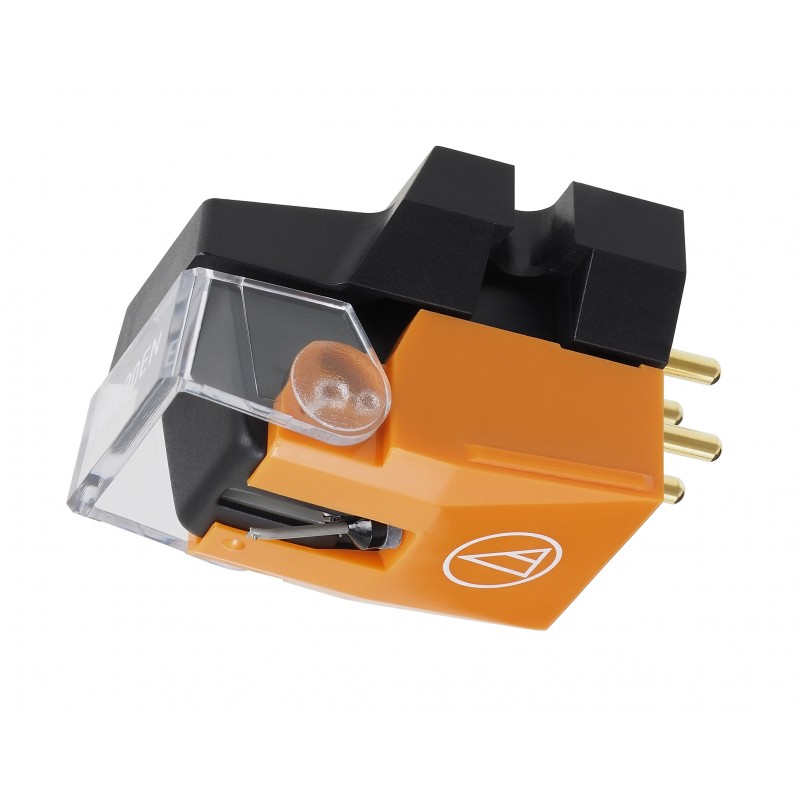

Audio Technica VM530EN is the version with the rich and full sounding top-end nude elliptical stylus.

The Audio Technica VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response.

The VM530EN cartridge from Audio Technica comes with a lightweight 0.3 x 0.7 mil elliptical nude stylus that reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus.

Also included are four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver and brush.

AUDIO TECHNICA
VM530EN

Data sheet

Output voltage
4.5mV @ 1kHz5cm/sec
Frequency response
20-23.000Hz
20-25.000Hz
Static compliance
35 x 10-6 cm/dyne
Vertical tracking angle
23°
Dynamic compliance
8 x 10-6 cm/dyne @ 100Hz
Stylus profile
Bonded Elliptical
Nude Elliptical
Stylus radius
0.3 x 0.7 mil
Tracking force
1.8g - 2.2g
