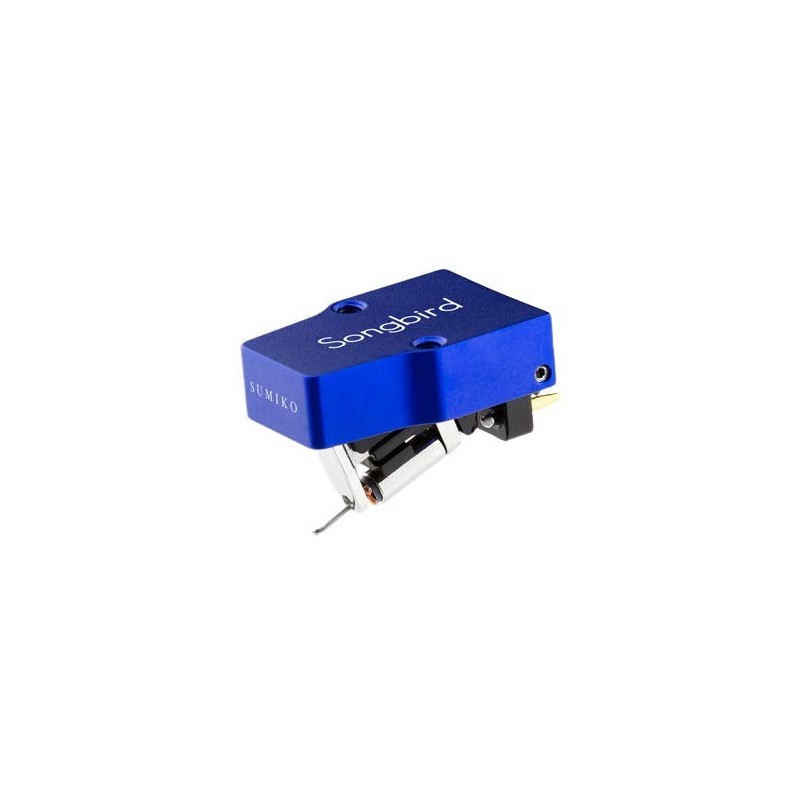

Sumiko Songbird Cartridge - Low Output MC

Sumiko Cartridges

Price: $854.68
No VAT
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe

The Sumiko Songbird comes in two versions. A high output and a low output. Together with the high output sibling this Sumiko Songbird Low Output MC is part of the Reference Series and has a beautiful open-body anchored to a highly rigid, resonance-optimized headblock. This is the low output version, which means that you need a MC phono stage or a step up between a MM phono stage and the cartridge.

All Sumiko cartridges from Oyster to the Reference series are crafted by hand in Yokohama Japan.

Sumiko engineers have selected by ear the finest materials and each design is thoroughly auditioned until perfected. Production is then executed by world-class cartridge makers with a collective eye for precision & quality.

The sound is clear and ultra-musical with just the right degree of warmth, dynamic and firm bass, and compared to the high output version the Songbird Low offers an even deeper soundstage with greater reach width-wise

Sumiko Songbird Low Output MC has the universal ½”-mount and threaded inserts in the cartridge body, which enable the cartridge to be mounted to the headshell with just two screws.

We recommend around 20 hours break-in.

Don’t hesitate to contact our support team if you need help to pick the right cartridge for your needs and preferences.

SUMIKO
SCA101017

Data sheet

Output voltage
0.5mV
Frequency response
12Hz – 40kHz
Cantilever
⌀0.5mm Treated Aluminum Alloy
Vertical tracking angle
20°
Channel separation
30dB @ 1kHz
Tracking force
1.8g – 2.2g
2.0g
Replacement stylus
Re-Tip Exchange
Re-Tip Exchange (See Dealer)
Recommended tracking force
2.0g
Channel balance
Less than 0.5dB @ 1kHz
Cartridge mass
8.5g
Stylus Type
0.3 x 0.7mil Polished Elliptical
Coils
High-Purity Copper
Compliance
12×10-6cm/dyn @ 100Hz
Load resistance
More than 100Ω
Load capacitance
100pF – 200pF
Internal resistance
28Ω
