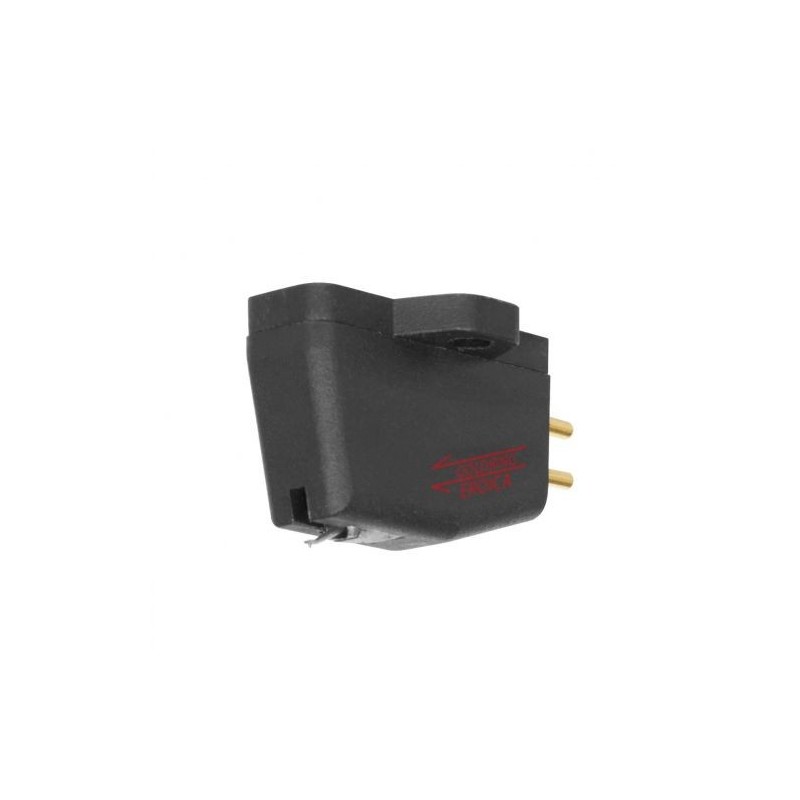

Goldring Eroica-H Cartridge image
  • Goldring Eroica-H Cartridge image

Goldring Eroica-H Cartridge

Goldring Cartridges

Price: $478.63
No VAT
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe

The Eroica H is designed to to be used with any type of phono input. It features the famous Gyger II diamond stylus profile, a nude, fine-line elliptical type with a 6 µm lesser radius, which gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound. (?) The high output Eroica H offers an exceptional standard of performance and reliability and can be used with any amplifier which features either a standard 47 kΩ MM phono input or a dedicated low impedance MC input.

GOLDRING
GL0020M

Data sheet

Frequency response
20 Hz - 22 kHz ± 3 dB
Static compliance
30 mm/N
Vertical tracking angle
24 °
Dynamic compliance
@ 10 Hz18 mm/N
Channel separation
better than 25 dB @ 1 kHz
Stylus radius
Gyger II
Channel balance
within 1 dB @ 1 kHz
Cartridge mass
(inc. fixings)6.6 g
5.5 g
Stylus Type
Non-Replaceable
Load resistance
47 kΩ
Load capacitance
100 - 500 pF
Internal resistance
77 Ω
Internal inductance
0.2 mH
Sensitivity
2.5 mV ± 1 dB 1 kHz @ 5 cm/sec
Playing weight
1.5 - 2.0 g (1.7 g nom.)
Fixing centre
0.5 " (12.7 mm)
Equivalent tip mass
0.6 mg
