Goldring G1012GX Cartridge (M)

Goldring Turntable Cartridges

Price: $281.16
No VAT
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe

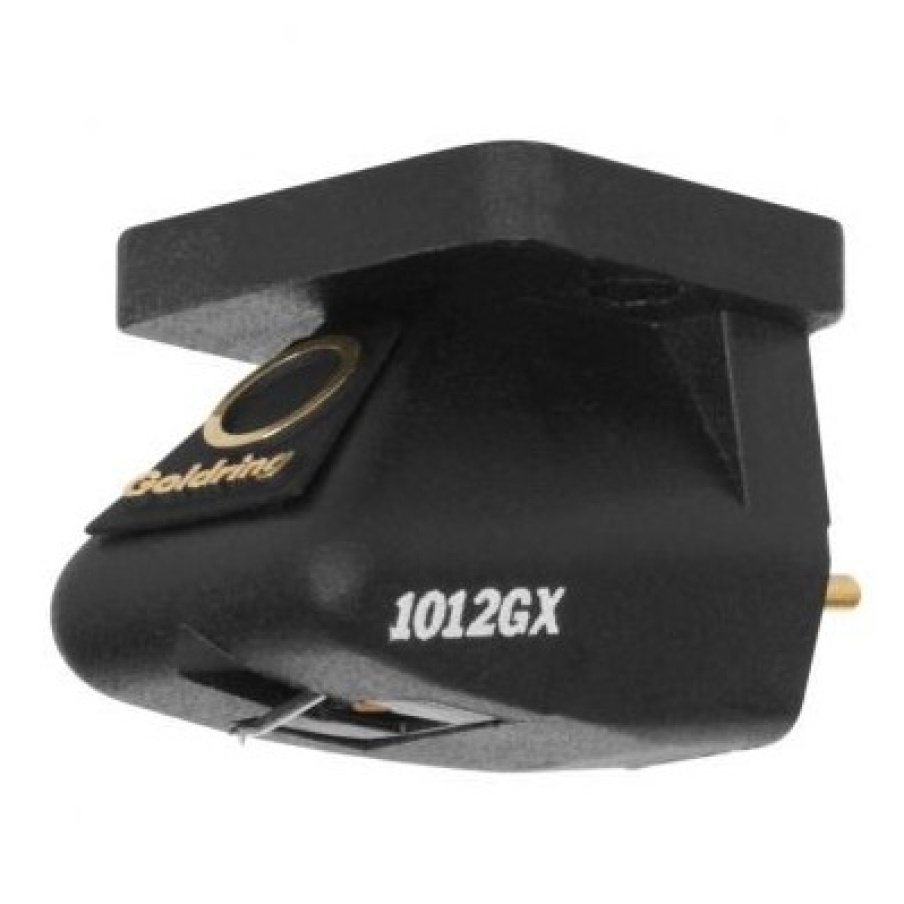

This hand-built 1012GX cartridge uses the acclaimed Gyger II nude diamond stylus. A fine-line elliptical type with a 6 µm small radius it gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound. Advanced diamond tip polishing ensures excellent tracking ability and reduces record wear.
GOLDRING
GL0035M

Data sheet

Frequency response
20 Hz - 20 kHz +/- 3 dB
Stylus radius
Gyger II
Static compliance
20 mm/N
Vertical tracking angle
24°
Dynamic compliance
10 mm/N @ 10 Hz
@ 10 Hz10 mm/N
Channel separation
better than 25 dB @ 1 kHz
Channel balance
within 2 dB @ 1 kHz
Cartridge mass
(inc. fixings)7.6 g
6.3 g
Stylus Type
Replaceable
Load resistance
47 kΩ
Load capacitance
150 - 200 pF
Internal resistance
660 Ω
Replacement stylus
1012GX - D12GX
Equivalent tip mass
0.45 mg
Internal inductance
570 mH
Sensitivity
6.5 mV +/- 1.5 dB 1 kHz @ 5 cm/sec
Playing weight
1.5 - 2.0 g (1.7 g nom.)
Fixing centre
0.5" (12.7 mm)
